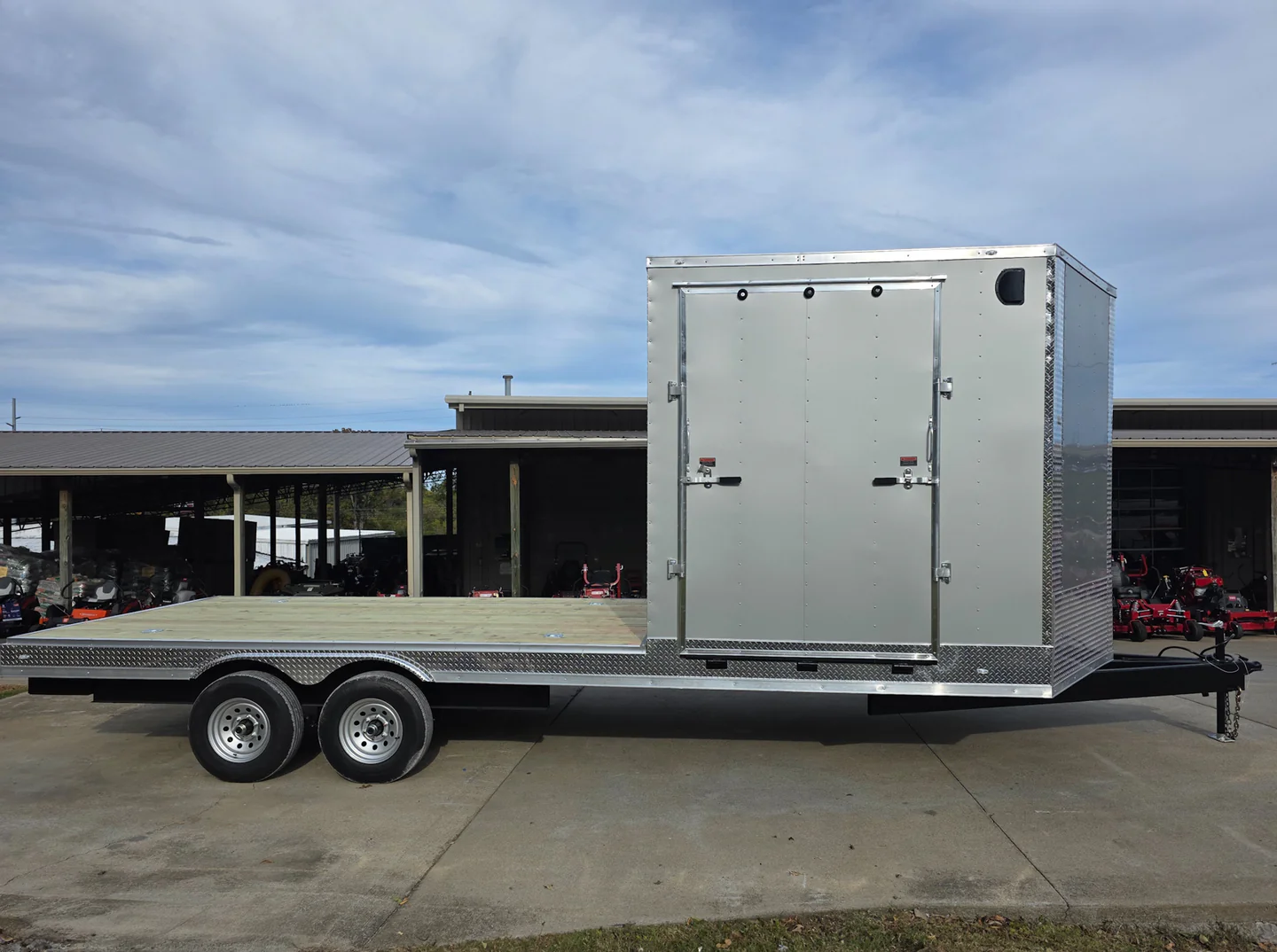

8.5×22 Hybrid Deckover Enclosed Trailer (2) 5200lb Axles

Features:

• Overall Length: 22 ft total

• Enclosed Section: 8 ft long

• Open Deck: 14 ft long

• Interior Height (Enclosed): 8 ft clear interior height

• Width: 8.5 ft deckover (full width, no fenders)

• Design: Deckover platform for maximum usable deck area and ground clearance

• Axle Position: From start of box to axle center — 15 ft (balanced for proper tongue weight and towing stability)

• Frame: Heavy-duty all-steel tubular frame, welded and powder-coated for corrosion resistance

• Exterior Material: Aluminum skin over steel frame (hybrid configuration)

• Color: Silver with matching silver trim

• Finish: Smooth exterior with minimal fasteners for a clean, modern look

• Front Style: V-nose for aerodynamic efficiency and added interior space

• Roof: No roof (open hybrid design — covered enclosed section only)

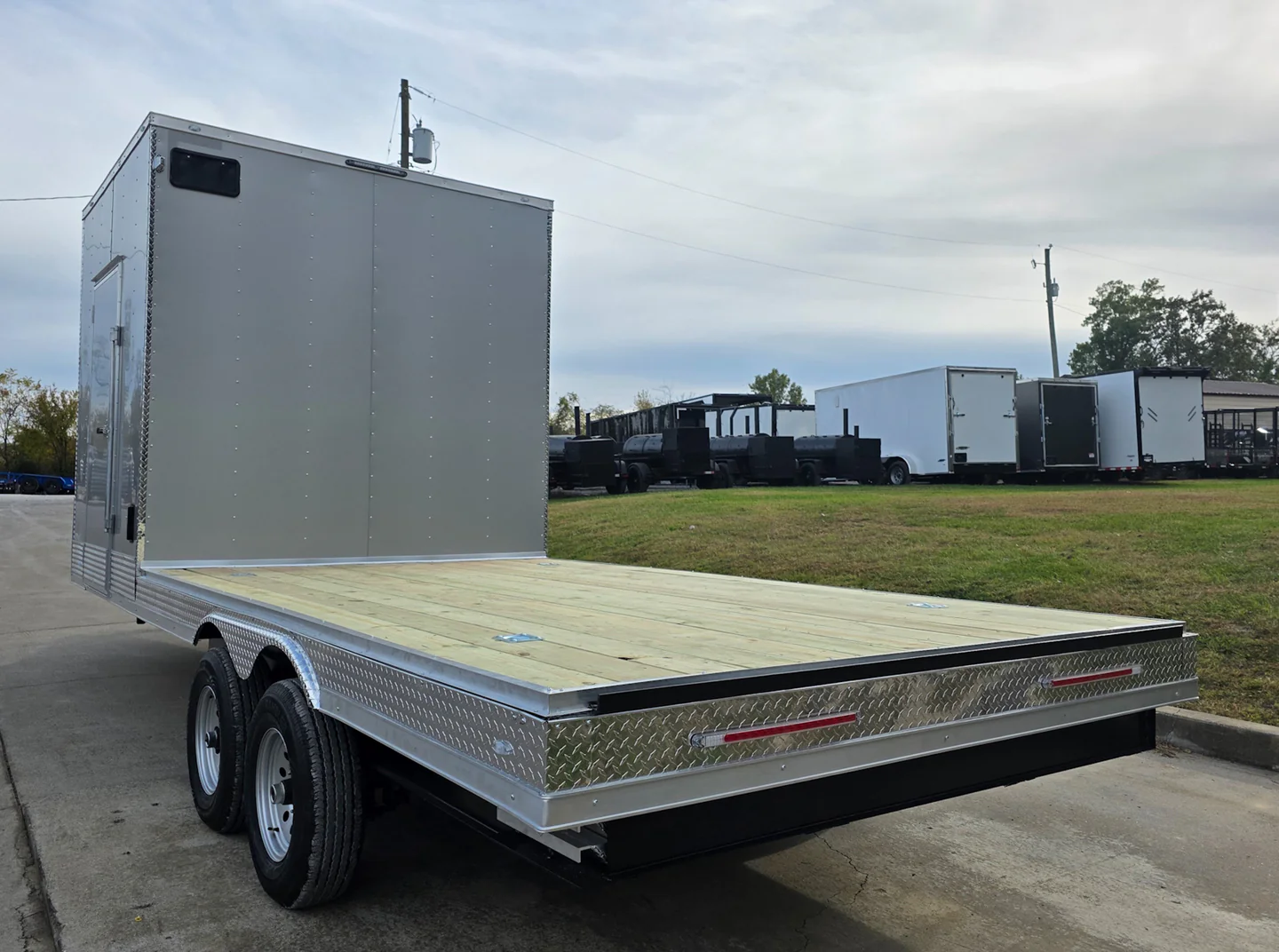

• Deckover Height: Full-width platform built above the wheels for flat loading surface

• Trim & Molding: Silver aluminum trim and corner caps

• Axles: Tandem 5200 lb rated axles (10,400 lb combined GVWR)

• Brakes: Electric brakes on both axles with breakaway safety system

• Suspension: Multi-leaf spring suspension for durability and even load distribution

• Tires/Wheels: ST radial tires mounted on modular steel rims

• Hubs: EZ-lube grease fittings for simplified maintenance

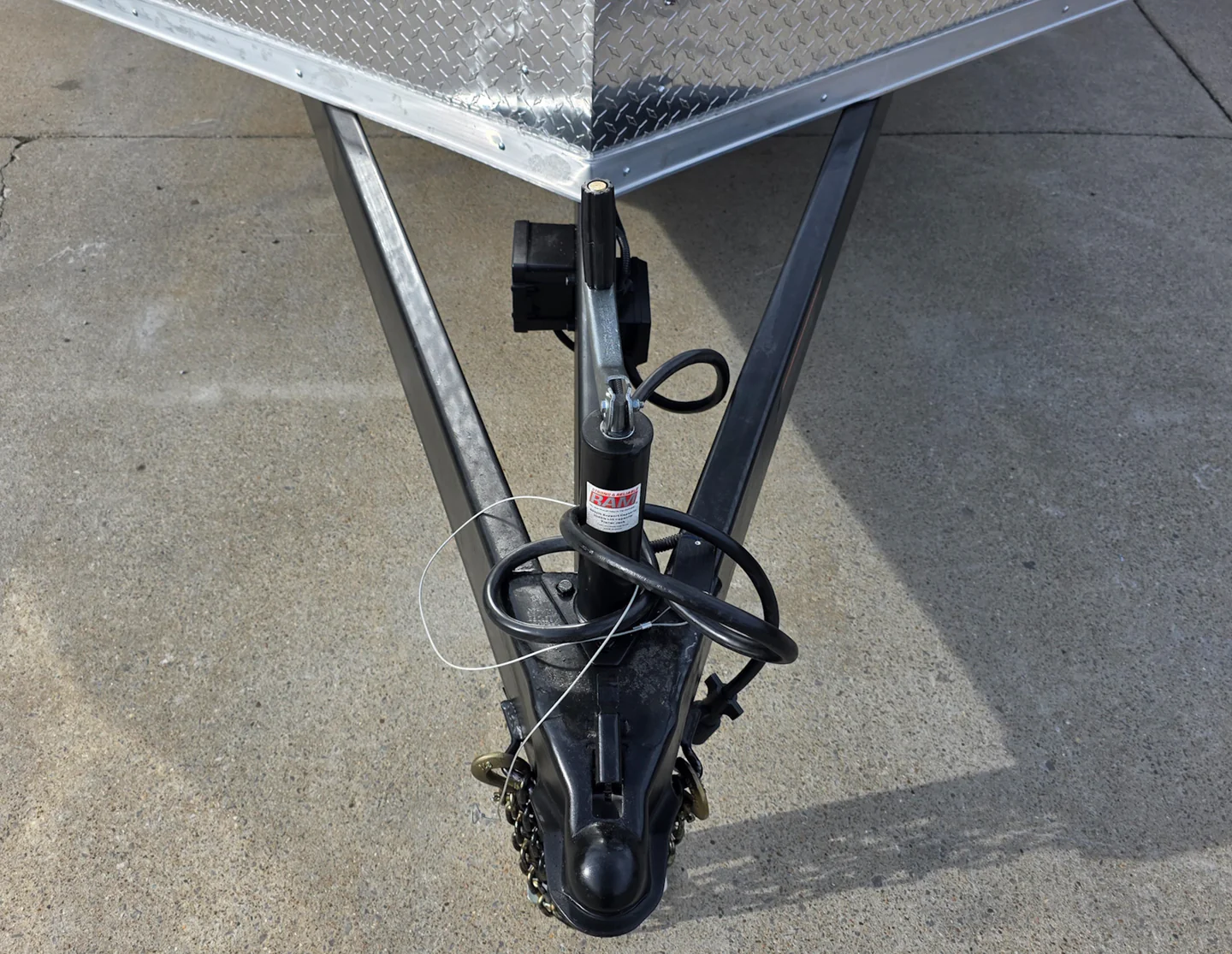

• Jack: Heavy-duty tongue jack (manual, 5,000 lb rating standard; electric optional)

• Coupler: 2-5/16” adjustable ball coupler with safety chains

• Driver-Side Door: 36″ wide RV-style man door with lockable latch and weather seal

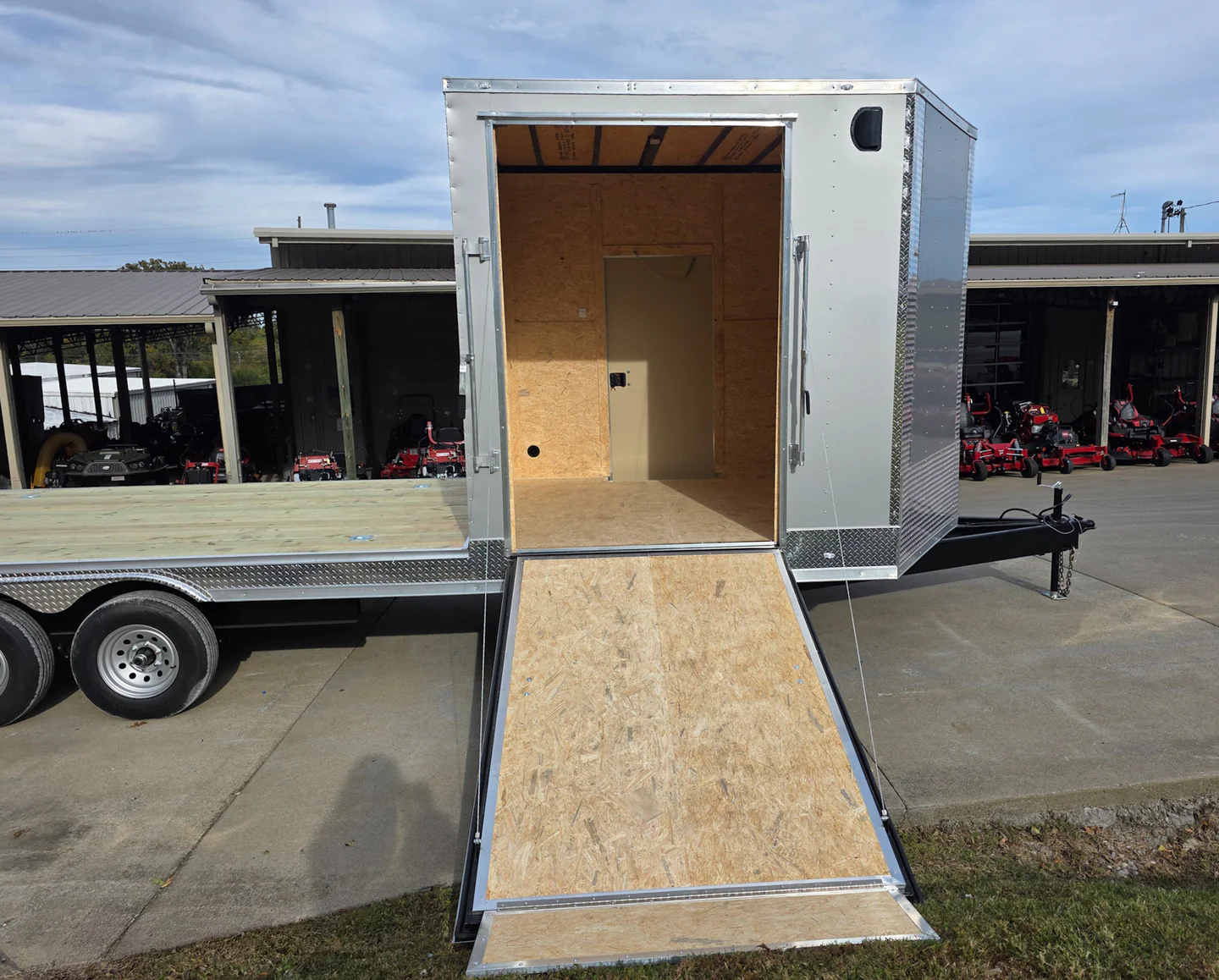

• Passenger-Side Ramp Door: 5 ft wide x 8 ft tall ramp door for easy side loading

  • Spring-assisted operation for smooth opening and closing

  • Non-slip surface for vehicle or equipment access

• Rear (Open Deck): Open tail configuration, no ramp or gate for direct load access

• Type: Deckover open deck with wood flooring

• Deck Length: 14 ft open area

• Material: Pressure-treated wooden deck boards

• Surface: Non-skid natural wood finish

• Rails: None (flat edge design for full-width cargo access)

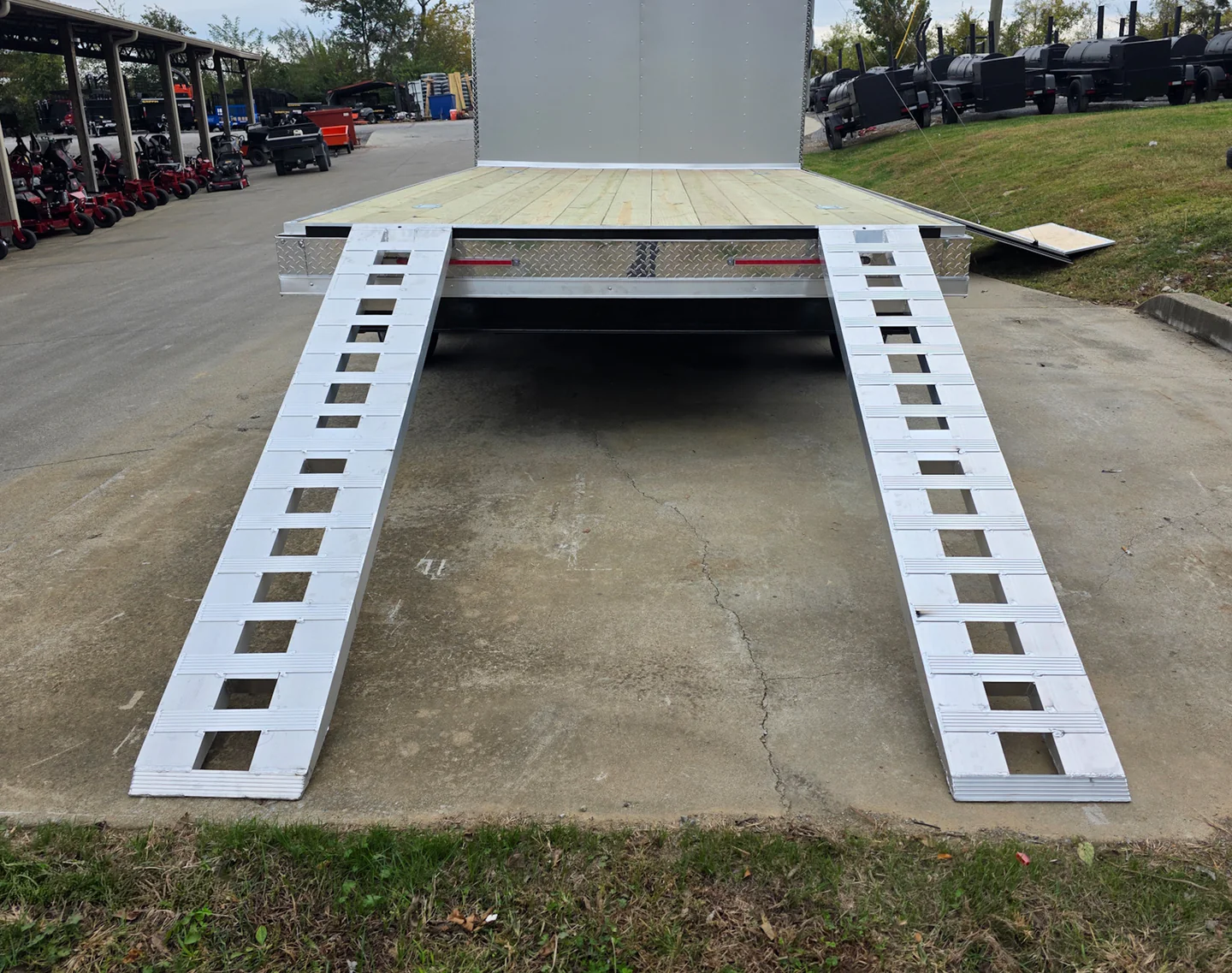

• Ramps: (2) 6 ft slide-out ramps stored under the deck for quick deployment

• Load Capacity: Rated to match axle load rating (10,400 lbs total)

• Tie-Downs: (4) Heavy-duty D-rings mounted to deck frame for secure cargo tie-down points

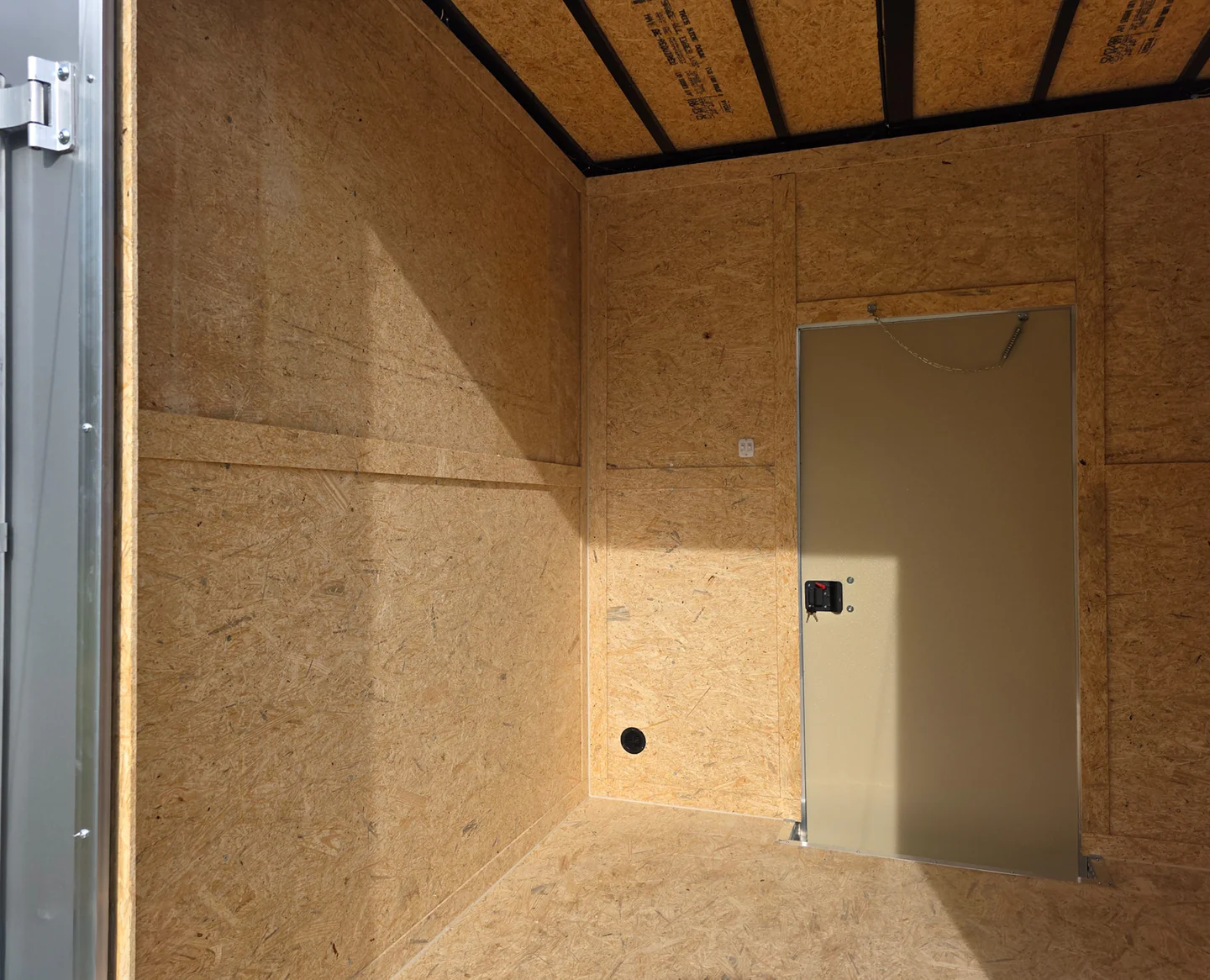

• Length: 8 ft

• Interior Height: 8 ft

• V-Nose Front: Provides aerodynamic design and extra usable space inside

• Walls: Aluminum exterior panels with internal structural framing

• Flooring: Wooden deck continuous through the enclosed area

• Lighting: LED interior dome lights (optional, not roof-mounted due to no roof)

• Ventilation: Optional side vents available upon request

• Pre-wired options: 12V LED lighting package available

• Power Connection (Optional): 30A or 50A motor base plug for power tools or accessories

• Lighting: DOT-approved LED marker, brake, and tail lights
